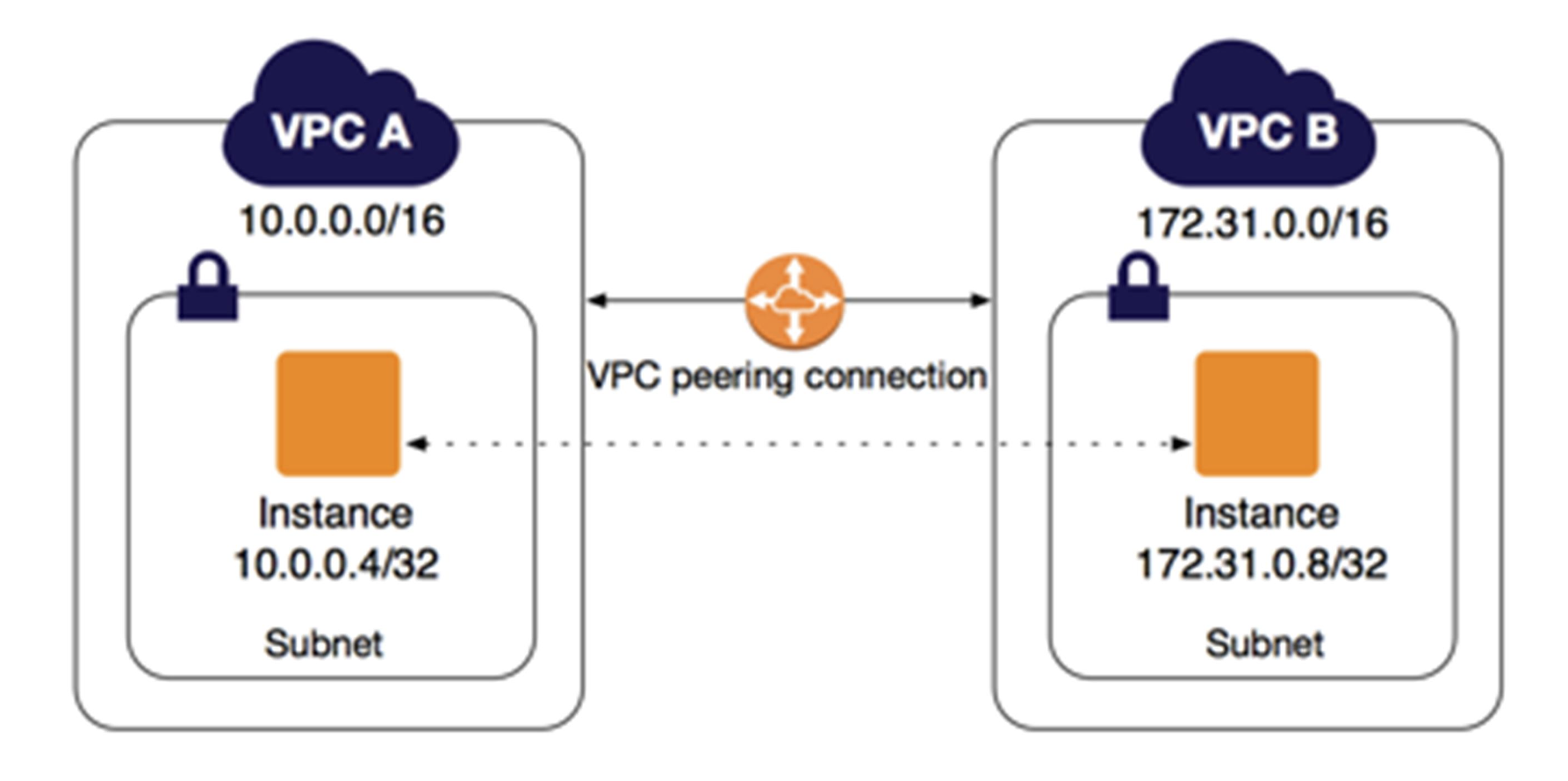

VPC Peering allows two VPCs to communicate with each other. Since VPCs can be placed in different regions for security, I will demonstrate connecting two VPCs across regions.

Create Personal VPC

1. Create a new VPC to use different IP range.

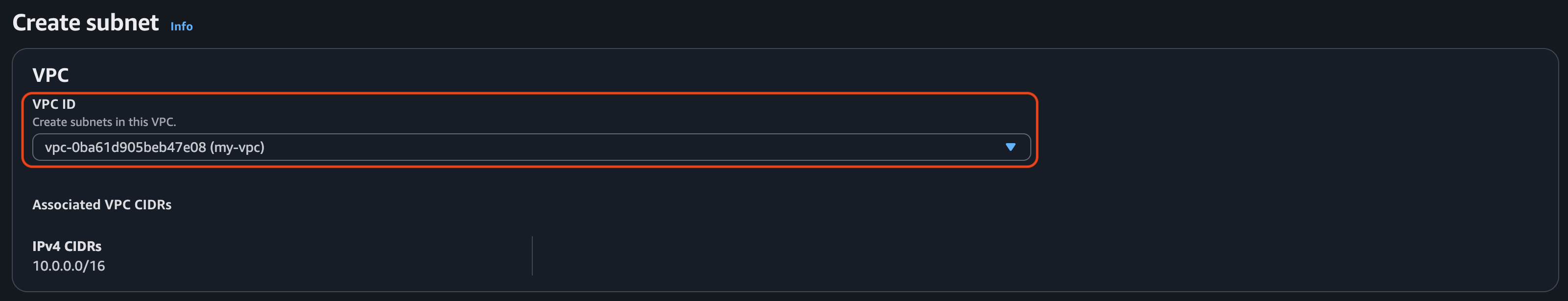

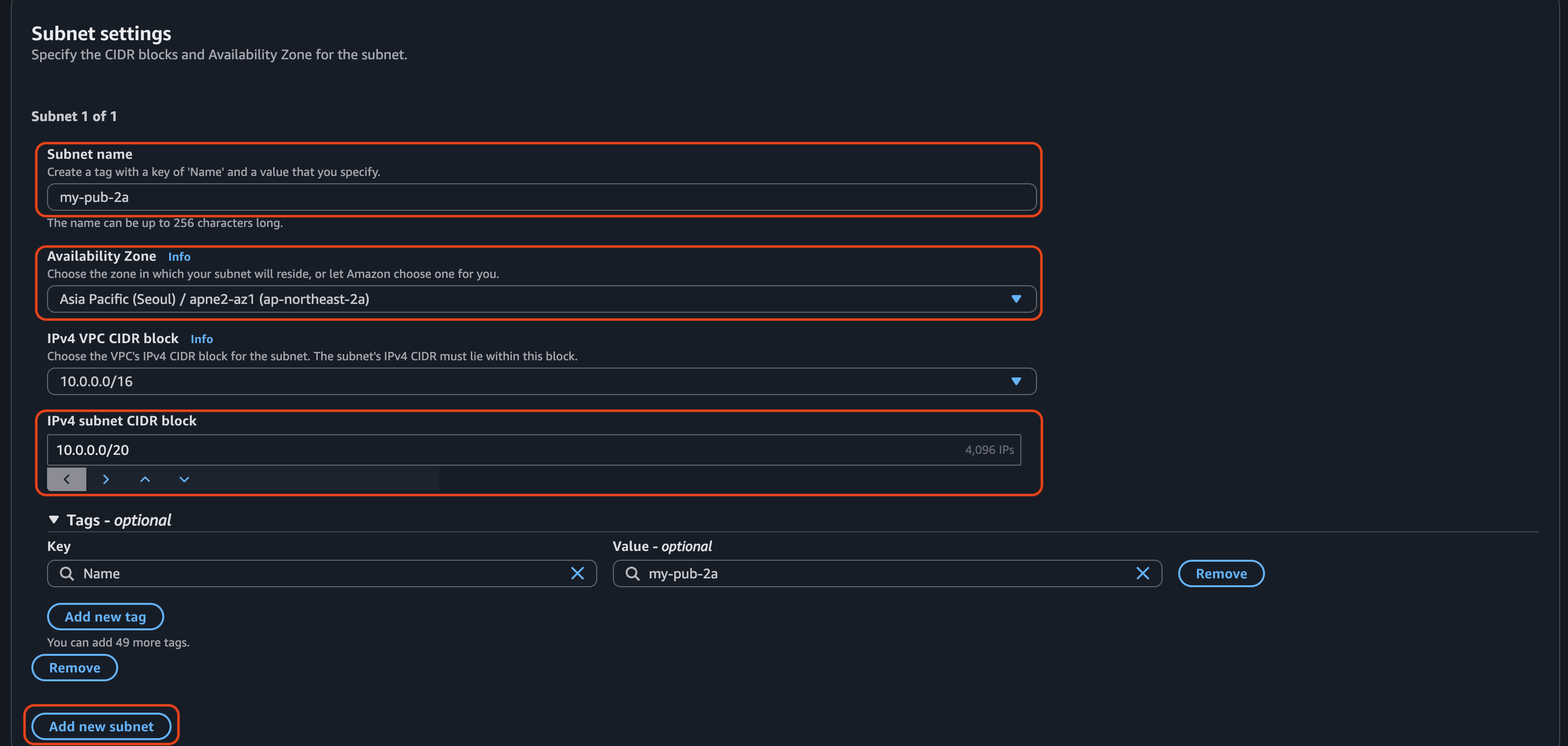

2. Configure each subnet.

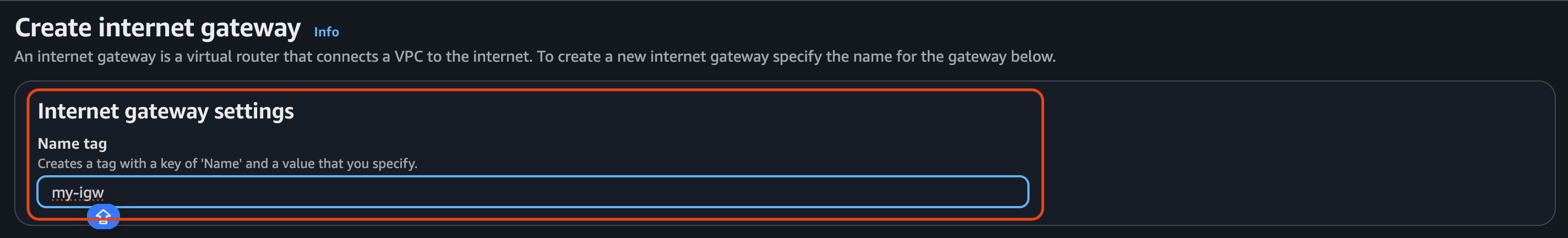

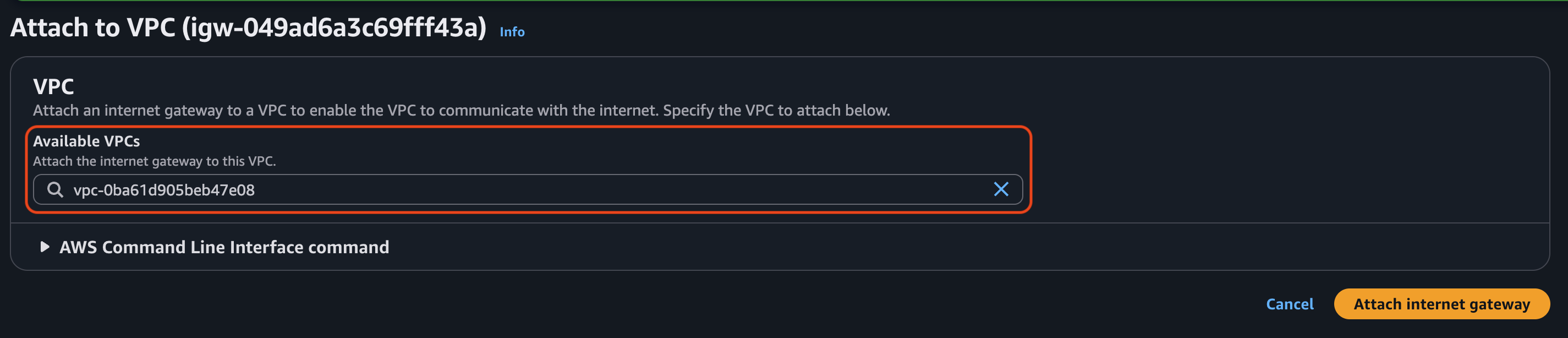

3. Create a new internet gateway and attach to VPC.

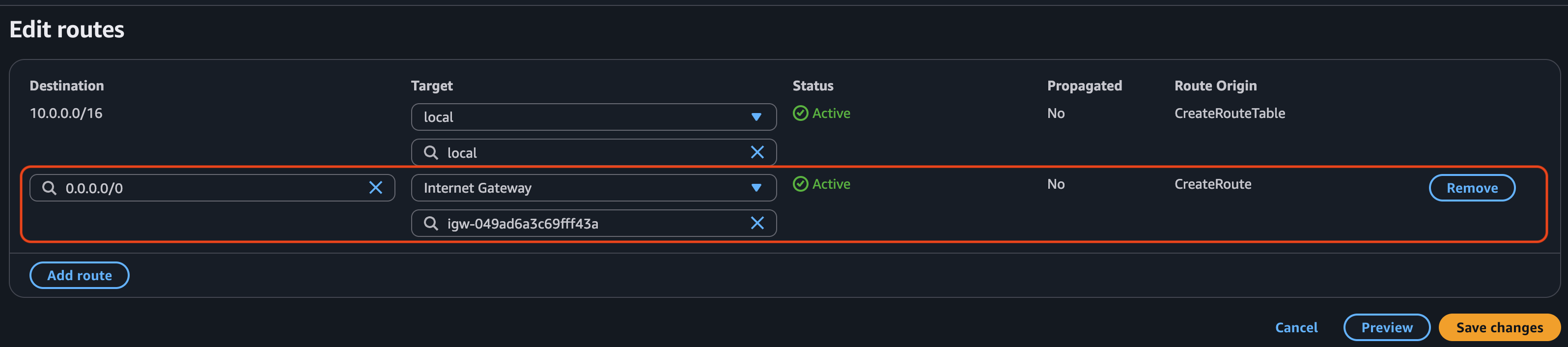

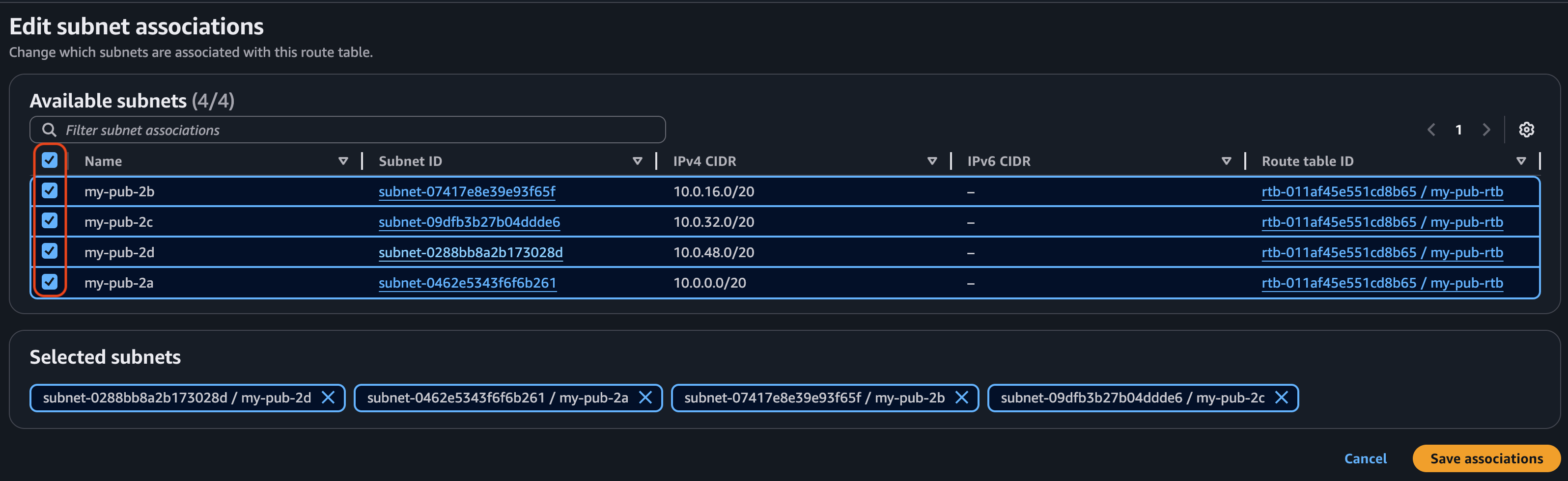

4. In the end, Create route table and edit subnet association and route.

Create two EC2 Instances in different regions.

Then, create an EC2 instance in each region, each running a web server. For one of the instances, select the VPC that we created earlier.

For example)

• Seoul Server Private IPv4 addresses : 10.0.6.38
• Osaka Server Private IPv4 addresses : 172.31.39.92

They can't communicate with each other. Now, I will configure Peering Connections.

Peering Connection

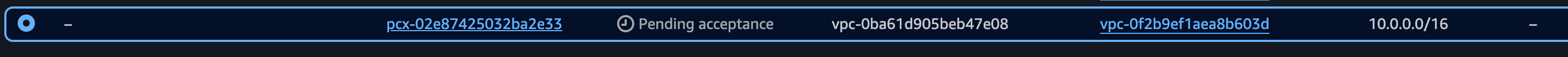

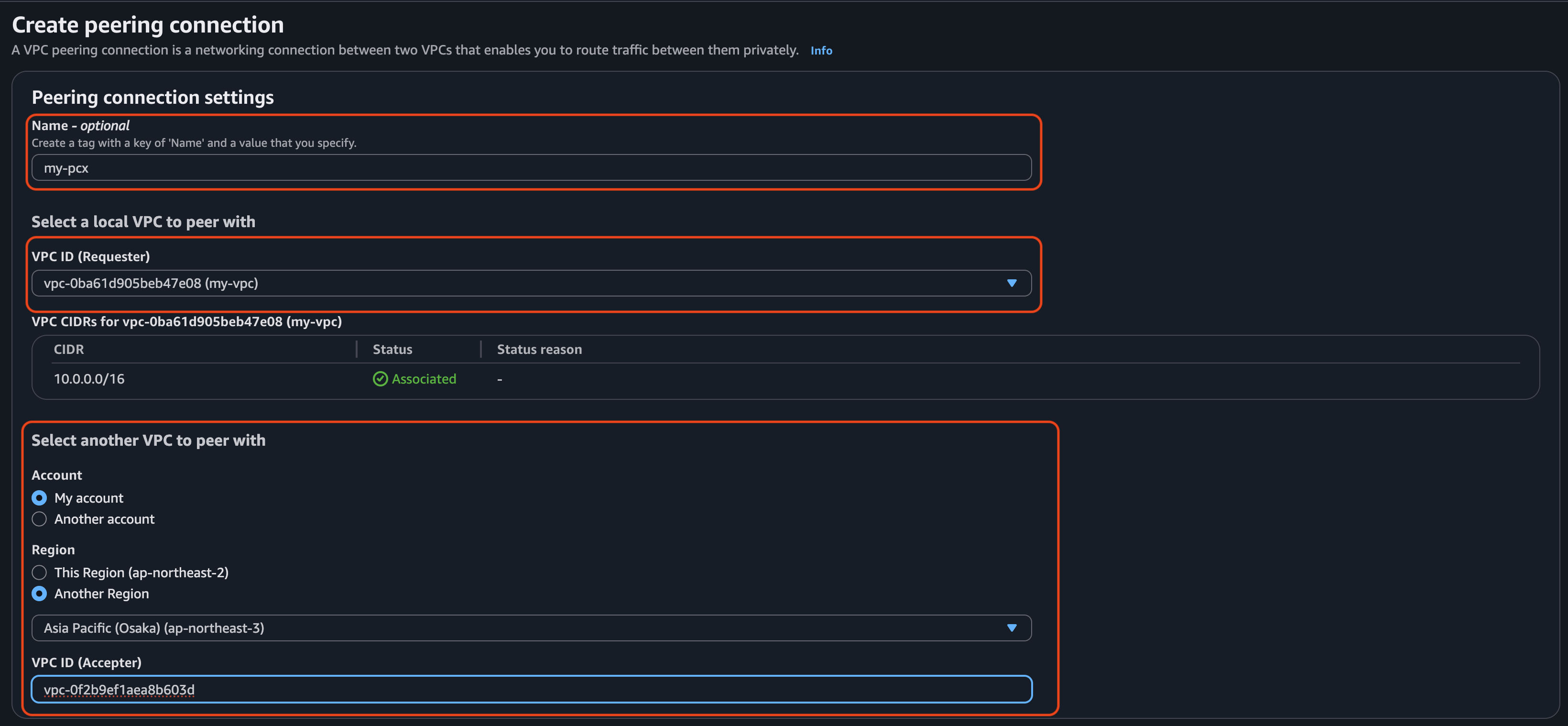

Choose another VPC to peer with, and then go to Peering Connections in the region where you made the request and accept it.

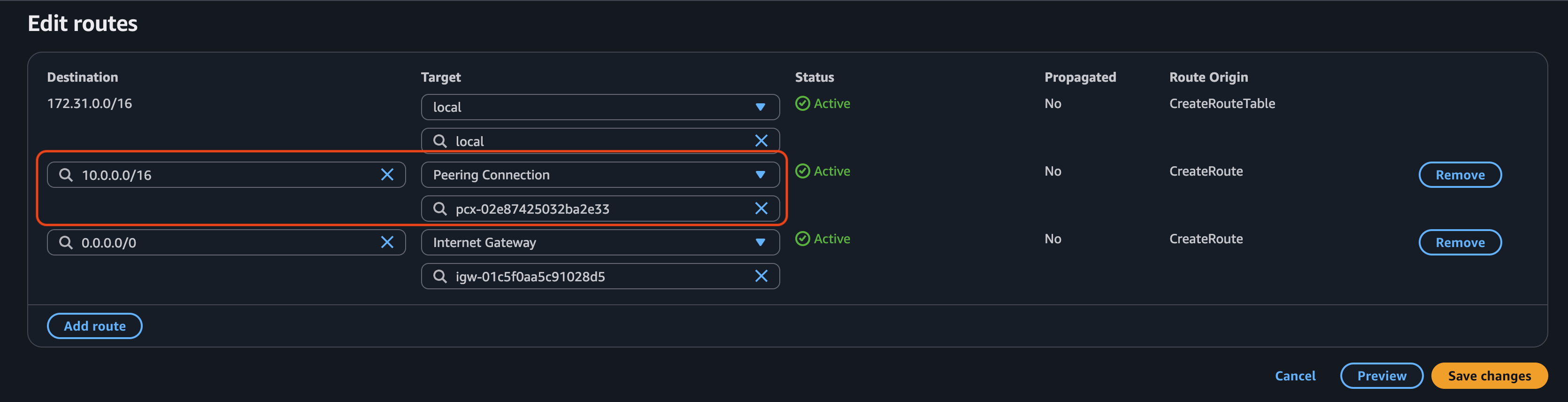

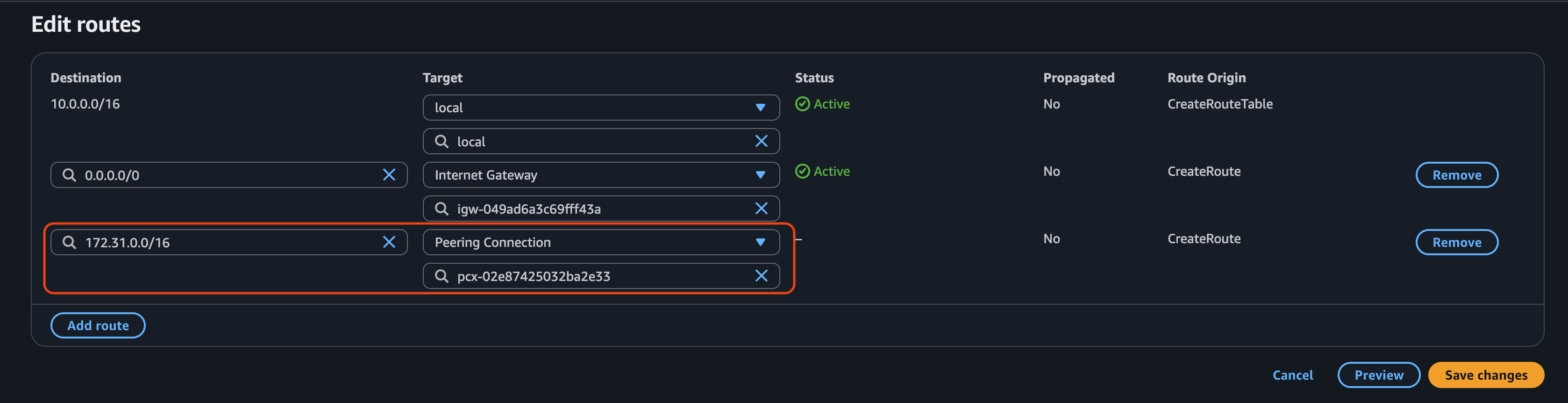

Configure the range of private IPv4 addresses to be used in another region.

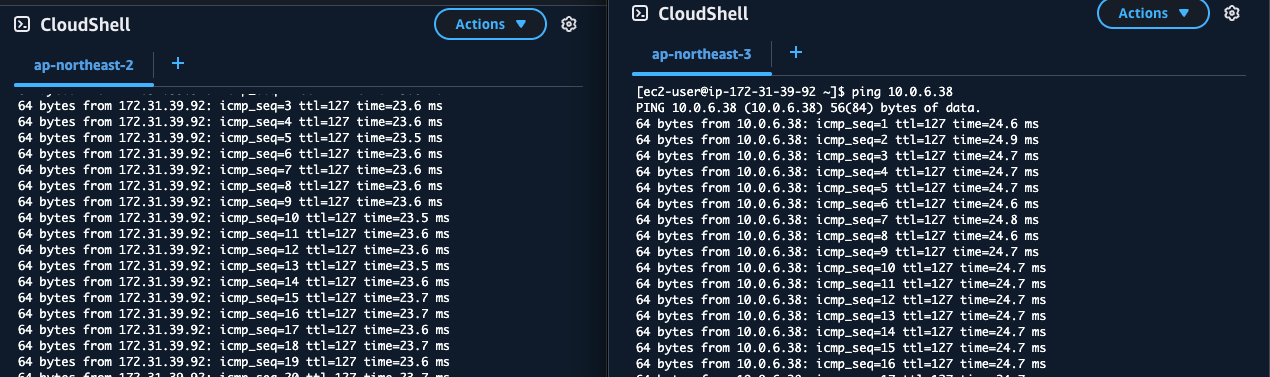

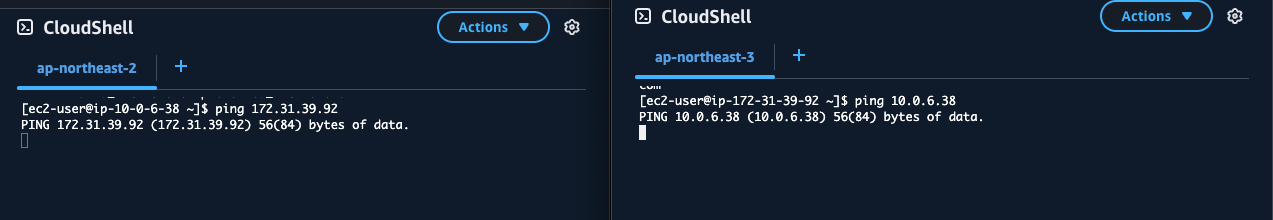

Now, the two servers in different regions can communicate with each other.

Wrap Up

VPC Peering is a powerful way to connect isolated networks without going through the public internet. If your infrastructure spans multiple VPCs or regions, peering provides a secure and low-latency option for communication.
