logo

kobevino

Implement HTTPS

Mon, Aug 19, 2024

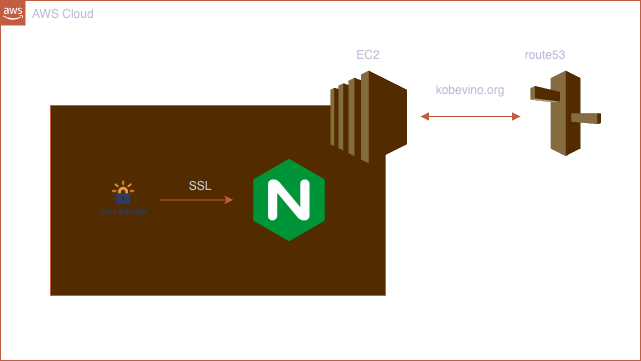

blueprint

What we have to do for the above image.

  1. Create an instance
  2. Register domain and allocate your elastic ip
  3. Install nginx
  4. Implement SSL
  5. Automate authentication certificate using crontab

Create Instance

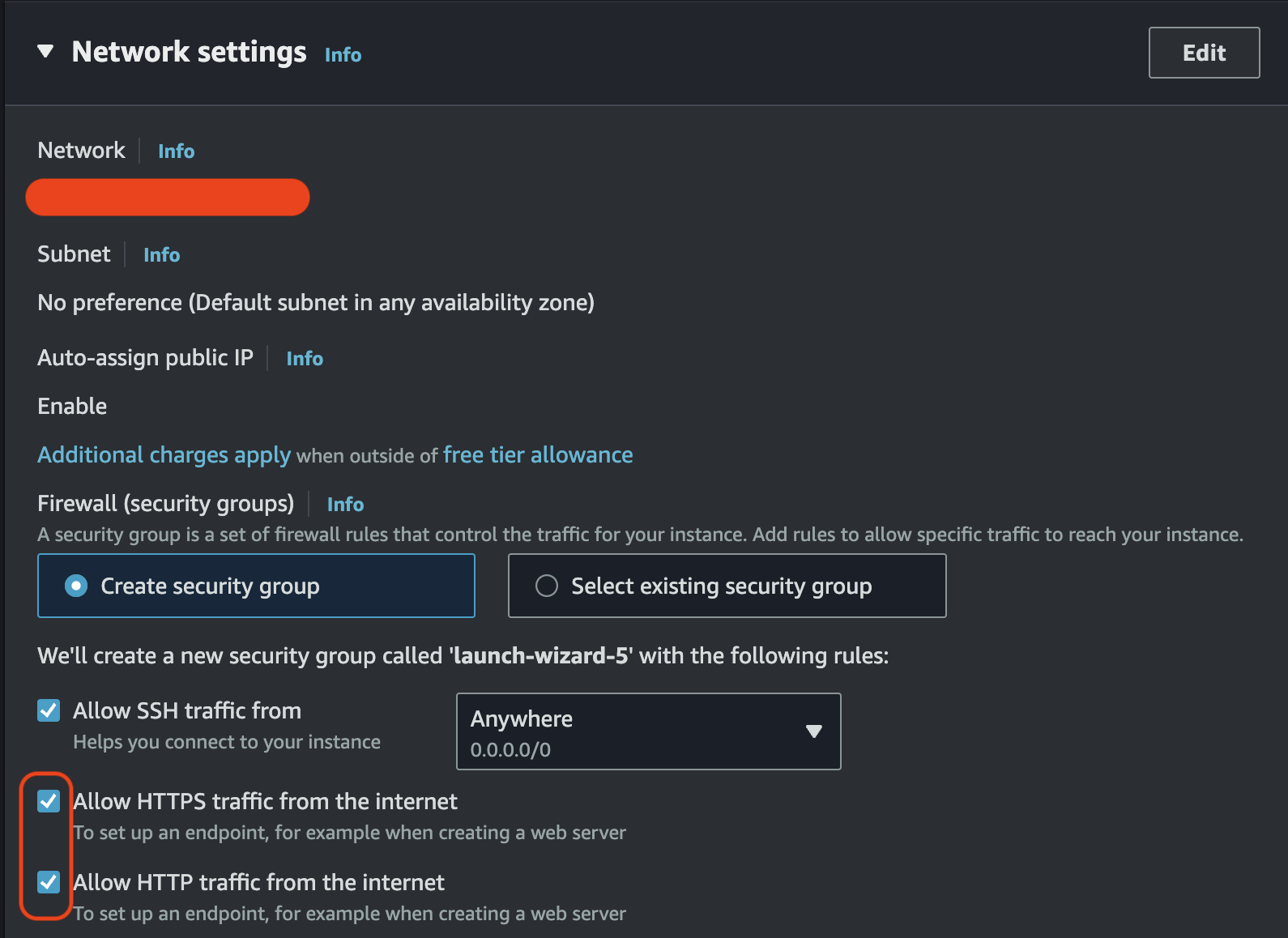

network setting

Don't forget to check two options when you create an instance. And we have to allocate an elastic ip address to your instance. We finished first step.

ec2 instance

Register domain

ec2 instance

Check the domain you want to register for and then buy the domain.

ec2 instance

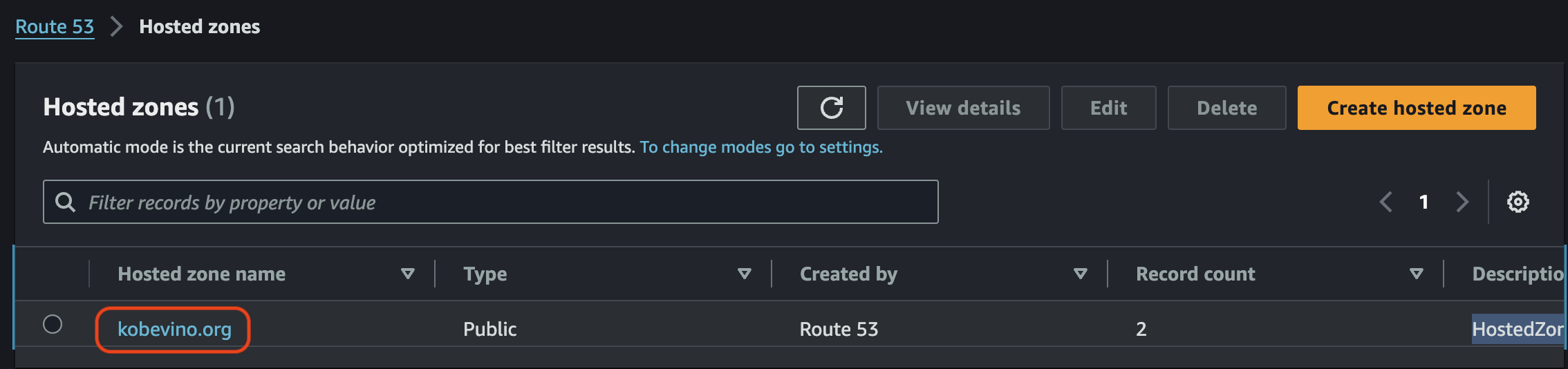

Move to hosted zones and click your domain.

ec2 instance

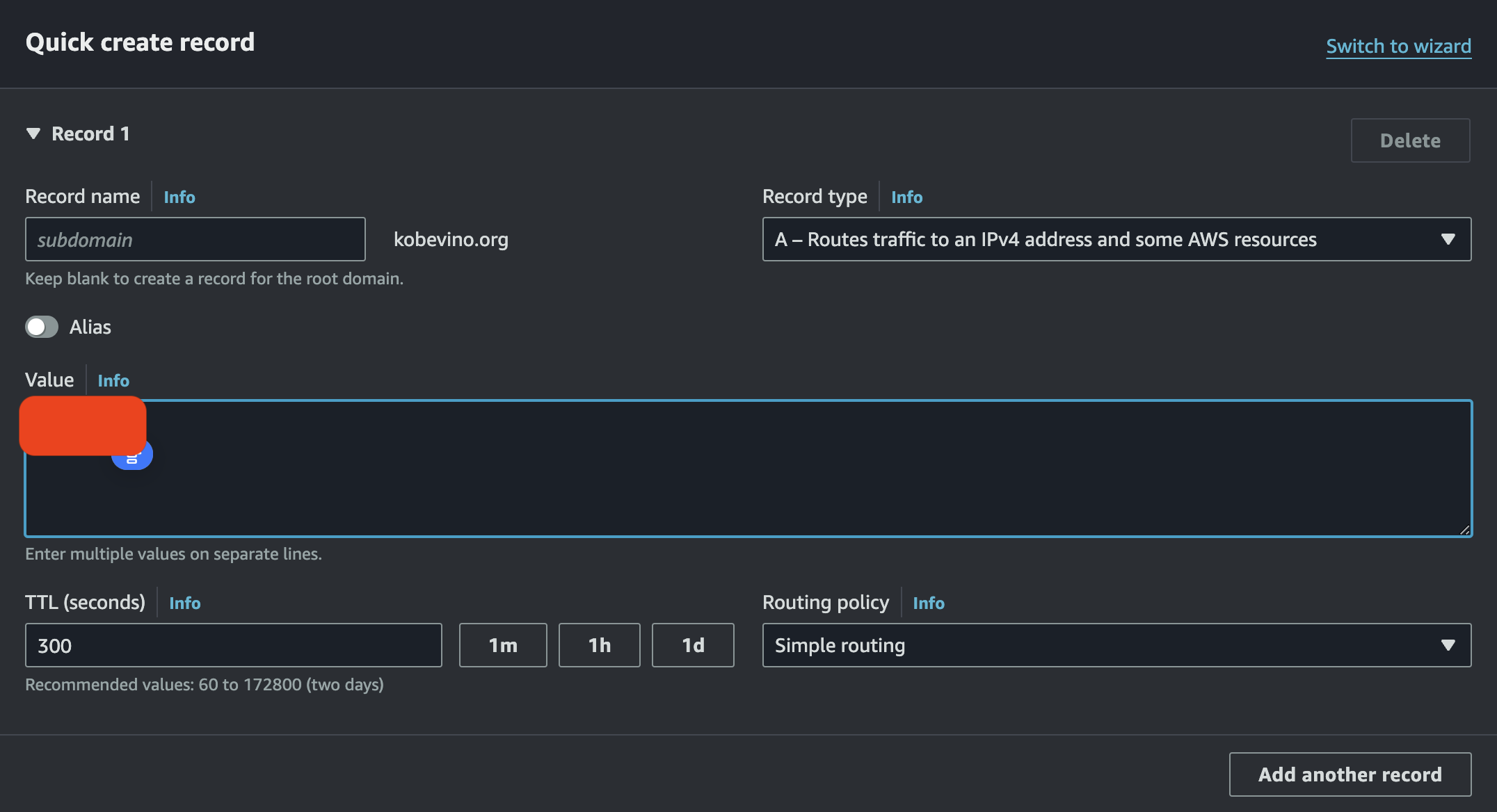

Click the button, create record.

ec2 instance

Input your elastic ip address in value.

As a result, we connected route53 to ec2 instance.

Install nginx

# Connect to your instance
$ ssh -i `your.pem` ec2-user@kobevino.org
# Install nginx
$ sudo yum install nginx
# Run nginx server
$ sudo systemctl start nginx

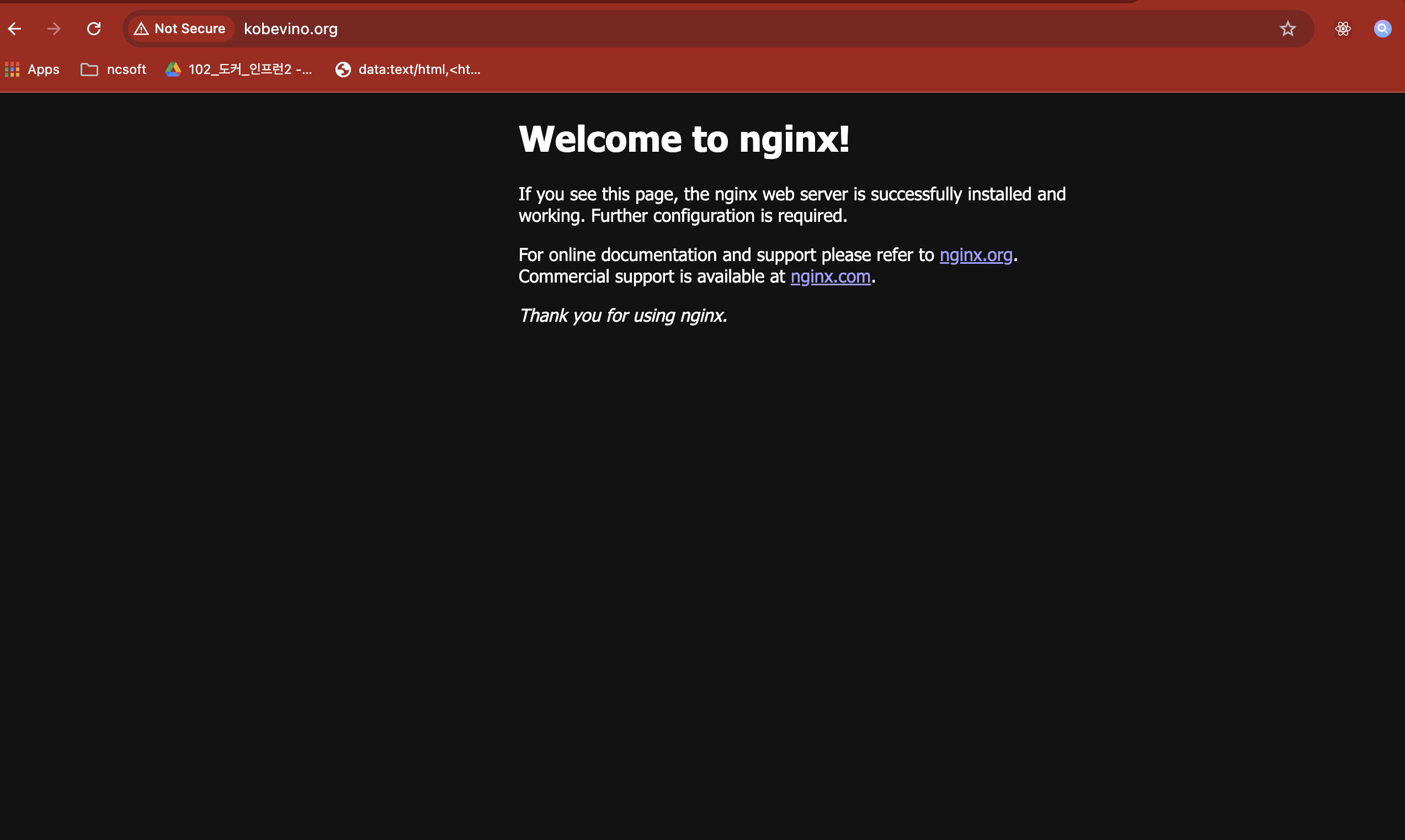

nginx domain

You can see a welcome page of nginx without ssl. We have to implement SSL with let's encrypt.

Implement SSL

# Stop nginx server
$ sudo systemctl stop nginx
$ cd /etc/nginx
$ sudo vim nginx.conf

nginx server name

Input your domain on server_name field in server block.

# Install certbot
$ sudo yum install certbot
# Install nginx plugin
$ sudo yum install python-certbot-nginx
# execute certbot
$ sudo certbot --nginx -d kobevino.org

input email

After last command, sudo certbot --nginx -d kobevino.org, you have to write your email.

# For more information on configuration, see:
#   * Official English Documentation: http://nginx.org/en/docs/
#   * Official Russian Documentation: http://nginx.org/ru/docs/

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log notice;
pid /run/nginx.pid;

# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;

events {
    worker_connections 1024;
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;
    tcp_nopush          on;
    keepalive_timeout   65;
    types_hash_max_size 4096;

    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;

    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;

    server {
        server_name  kobevino.org;
        root         /usr/share/nginx/html;

        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;

        error_page 404 /404.html;
        location = /404.html {
        }

        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
        }

    listen [::]:443 ssl ipv6only=on; # managed by Certbot
    listen 443 ssl; # managed by Certbot
    ssl_certificate /etc/letsencrypt/live/kobevino.org/fullchain.pem; # managed by Certbot
    ssl_certificate_key /etc/letsencrypt/live/kobevino.org/privkey.pem; # managed by Certbot
    include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
    ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

}

# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers PROFILE=SYSTEM;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#        location = /404.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#        location = /50x.html {
#        }
#    }



    server {
    if ($host = kobevino.org) {
        return 301 https://$host$request_uri;
    } # managed by Certbot


        listen       80;
        listen       [::]:80;
        server_name  kobevino.org;
    return 404; # managed by Certbot


}}

If it completed successfully, check out your nginx.conf file. You can see new codes that managed by certbot.

$ sudo systemctl start nginx
# If you have some errors, check nginx status
$ systemctl status nginx.service
# Check 80 port
$ sudo lsof -i tcp:[PORT]
# Kill the port already in use
$ sudo kill -9 [PID]

nginx https

Finally, we can see https protocol.

Automate authentication certificate

If you don't work on crontab in your server, follow this step.

# Check crontab
$ sudo yum provides crontab
# Install cronie to use crontab
$ sudo yum install cronie
# Execute editor
$ crontab -e
0 0 1 * * certbot renew --renew-hook "sudo service nginx reload"

This means it automatically renews the authentication certificate every month at exactly 12:00 AM.

Wrap Up

It's a little complicated, but I made it. Everyone can do it.
